Description:
1. High Brightness even under sunlight ,Light Weight by using die-casting Aulminum Cbinet
2. Good waterproof IP65 for front and IP54 for rear,anti-corrosion,antifogging,long life
span>100000Hours
3. High brightness up to 6800CD, Long view distance from 100M away
4. Made with high quality Epistar leds keep high quality, low lighting decay, energy saving
5. Brightness can be adjusted automatically according to different surrondings,can be set to open and
close the screen on fixed automatically

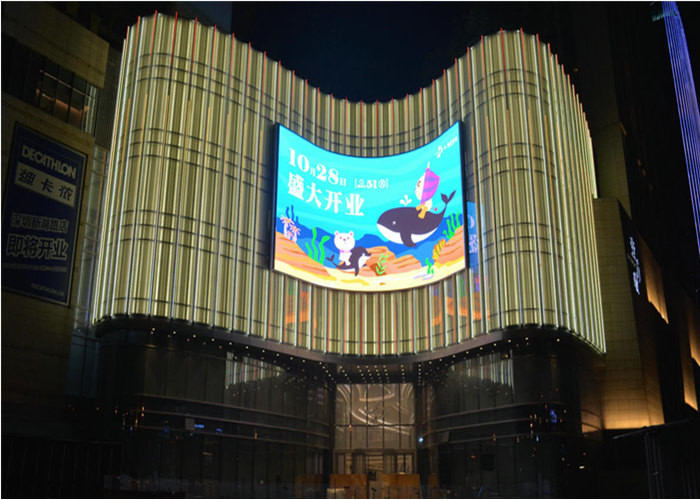

6. Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of
live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics,
antimation etc, connect with PC computer or network, also can remoto control with synchronous system.
7. Cabinet size and materials can be customized according different projects
LED Display Specification
| The specifications of modules |
|
| |
| Items |
Parameter |
|
| Product Model |
P8 Full Color Led Module |
|
| Module size |
256mm*128mm |
|
| Pixel pitch |
8mm |
|
| Pixel density |
15625dots/m2 |
|
| Pixel configuration |
1R1G1B |
|
| Module resolution |
32dots(W)*16dots |
|
| Module maximum power consumption |
20W |
|
| Module Weight |
0.36kg |
|
| Driving method |
Constant Current Driving |
|
| Scanning method |
1/4 scan |
|
| Interface |
HUB75 |
|
| Brightness |
≥6500cd/m2 |
|
| The specifications of cabinets |
|
| |
| Cabinet size |
1024mm*768mm |
|
| Module quantity |
24pcs |
|
| Power supply |
5V/40A 5V/60A |
|
| Cabinet resolution |
128*96dots |
|
| Optimal viewing distance |
86M~100M |
|
| Optimal viewing angle |
160°(W) 120°(H) |
|
| RHWorking temperature |
(Work :-20°C~+50°C) |
|
| System operating humility |
10%-95% |
|
| The specifications of power supplier |
|
| |
| Operating Voltage |
AC220V±10% |
|
| Average power consumption |
350W/H |
|
| Maximum power consumption |
≤760W/m2 |
|
| Electric current |
≤20mA(single LED) |
|
| The specifications of control card |
|
| Control Panels |
Pentium4 or above |
|
| Operating system |
WIN98/2000/NT/XP |
|
| Control model |
Synchronization with PC |
|
| The specifications of the main technical parameters |
|
| |
| Driving device |
Constant Current Driving |
|
| Refresh rate |
≥1000HZ |
|
| Grey scale |
RGB Each 256, can display 16.7M colors) |
|
| MTBF |
≥9000hours |
|
| Power switch |
Automatic Switch |
|
| Display Mode |
800*600/1024*768/1280*900 |
|
